Mesa Ethernet Cards

Open a terminal (Ctrl Alt t) and gGet the device names of the installed Ethernet NIC’s

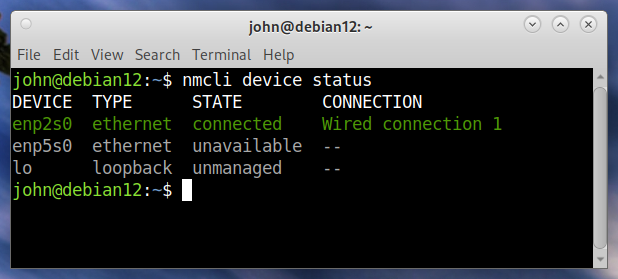

nmcli device status

For me enp5s0 is a PCIe NIC and is connected to the internet so the enp2s0 is the NIC that needs a fixed IP address.

Edit the network configuration file to create a fixed IP address for a Mesa card

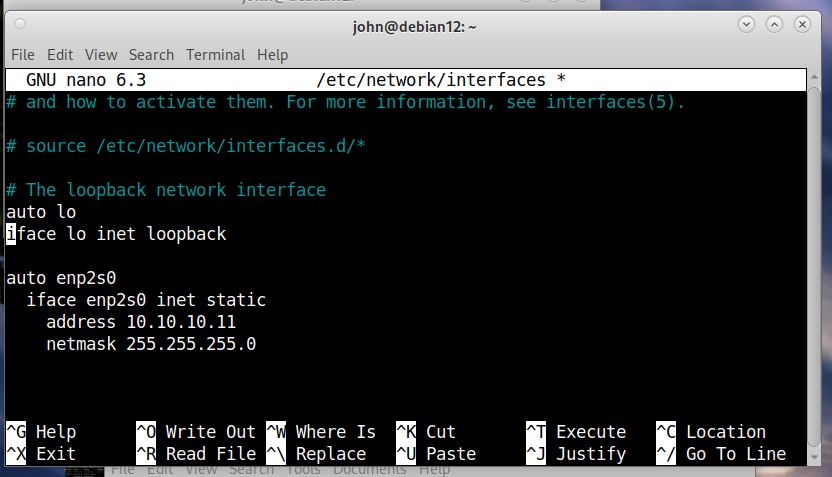

sudo nano /etc/network/interfaces

Comment out source /etc/network/interfaces.d/*

# source /etc/network/interfaces.d/*

Add a static IP for the enp2s0 device

auto enp2s0
  iface enp2s0 inet static
    address 10.10.10.11
    netmask 255.255.255.0

To save the changes Ctrl x, y, Enter

To determine what Ethernet controller you have in a terminal

lspci | egrep -i 'network|ethernet'

If you have a Intel Ethernet chip you must disable RX IRQ coalescing in the /etc/network/interfaces file by adding the following to the static IP

hardware-irq-coalesce-rx-usecs 0

Reboot the PC to restart the network or

sudo systemctl restart networking

To determine what Ethernet controller you have in a terminal

lspci | egrep -i 'network|ethernet'

If you have a Intel Ethernet chip you must disable RX IRQ coalescing in the /etc/network/interfaces file by adding the following to the static IP

hardware-irq-coalesce-rx-usecs 0

Plug in a Mesa Ethernet card and set the jumpers for 10.10.10.10 and open a terminal (Ctrl Alt t) and test the connection.

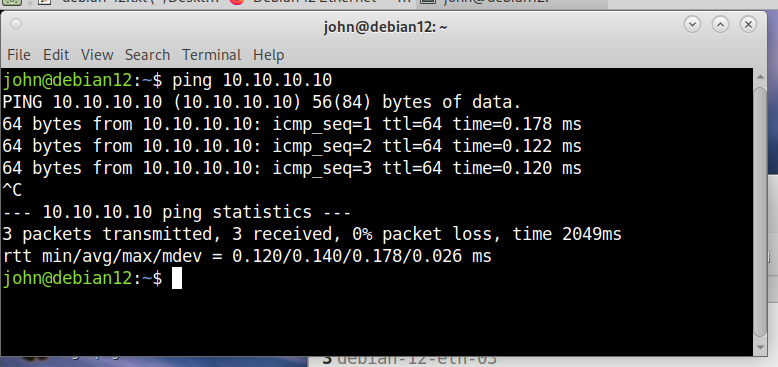

ping 10.10.10.10

Ctrl c to stop the ping.
