Master LayoutΒΆ

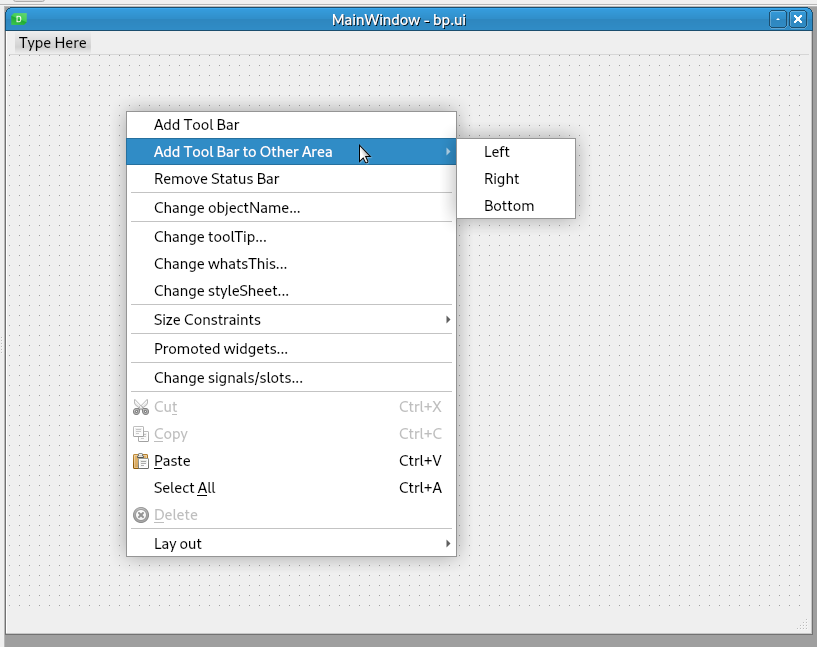

Starting with an empty mainwindow if you right click in the mainwindow you can add a tool bar or remove the status bar.

_images/layout-01.png

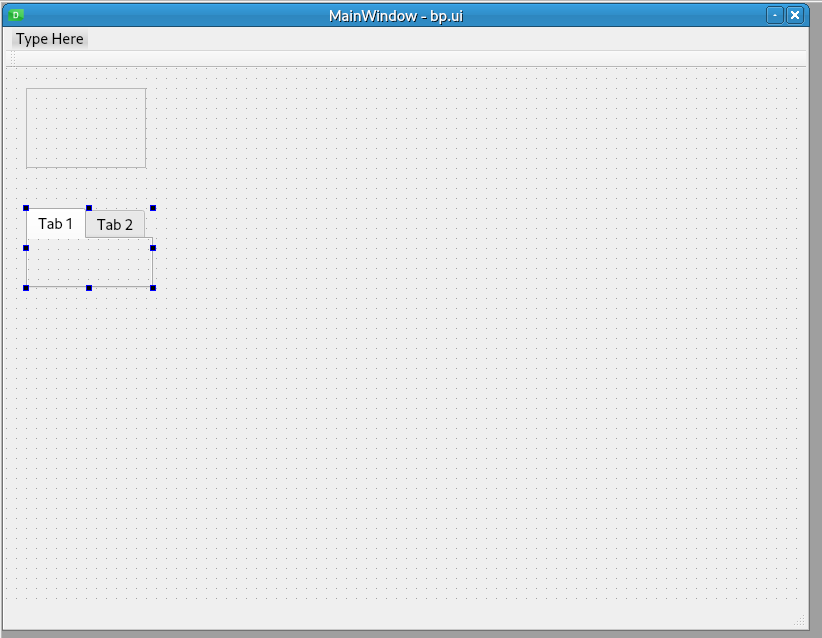

Next if you have some items you want visible all the time you can add a QFrame or QWidget then below that add a QTabWidget.

_images/layout-02.png

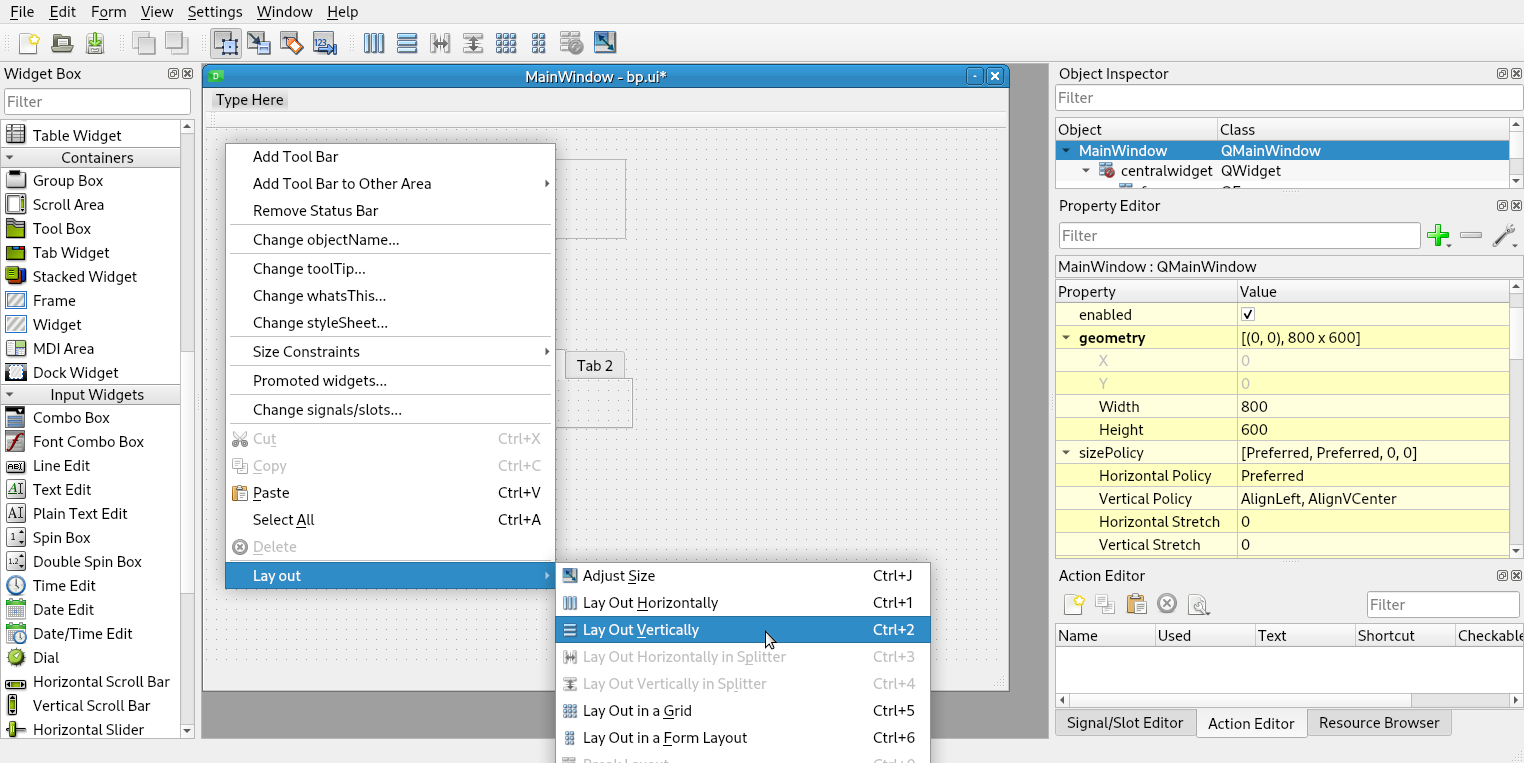

Now that you have at least one widget in the main window you can right click and select the layout you want to use.

_images/layout-03.png

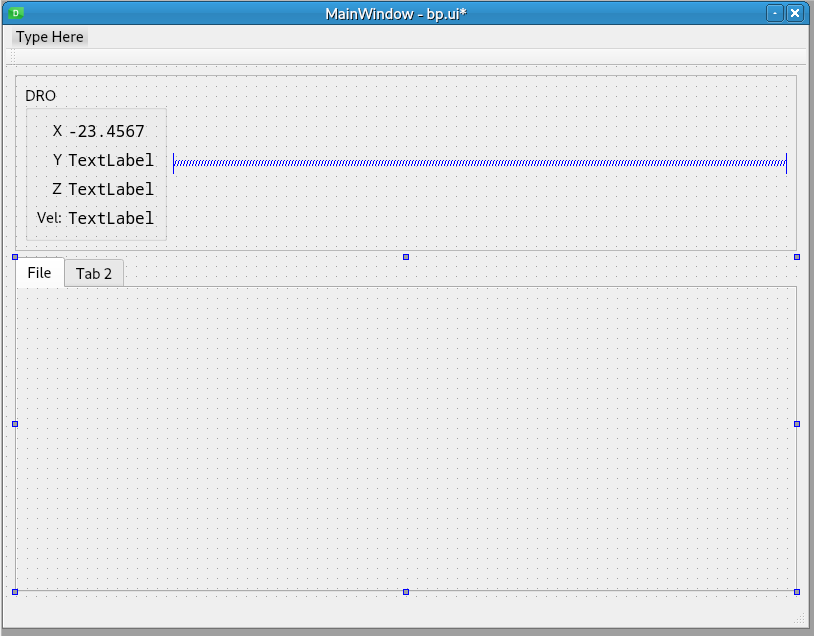

Example layout

_images/layout-04.png

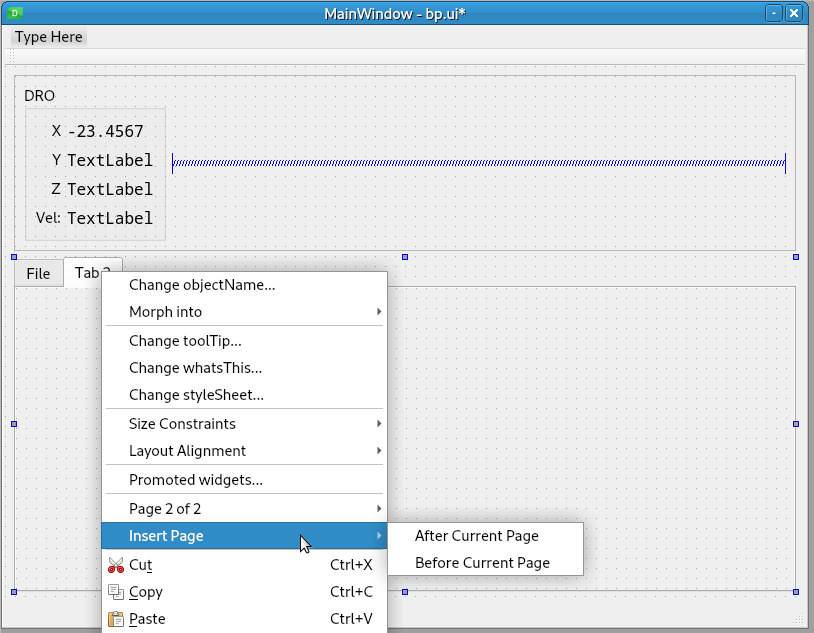

To add more tabs to a tab widget right click on the tab then select Insert Page and where you want it to be inserted.

_images/layout-05.png

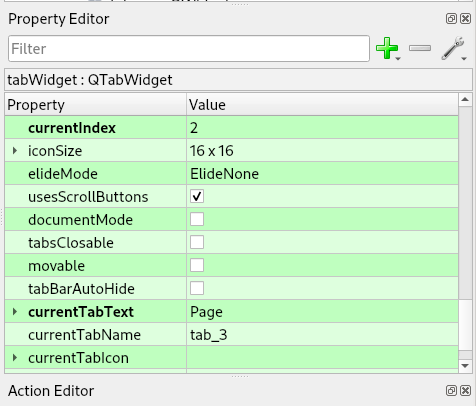

To change the tab name in the Property Editor in the QTabWidget section change the currenTabText value to the new name.

_images/layout-06.png
