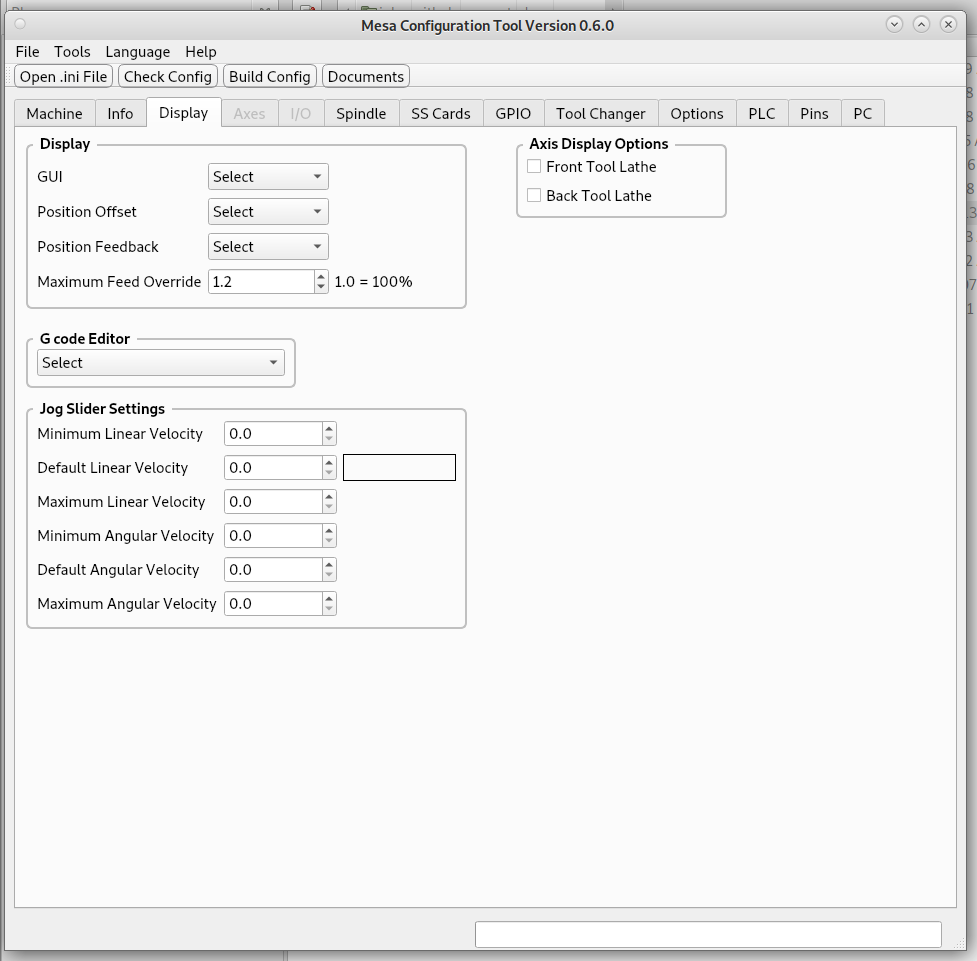

Display Tab

_images/display-tab-01.png

Display Group

  • GUI - Select the GUI you want to use

  • Position Offset - Typically Relative is selected which includes any offsets

  • Position Feedback - Typically Commanded is selected, a servo system when Actual is selected may bounce around and make the feedback change a lot.

  • Maximum Feed Override - Typically 1.2 is used

G code Editor Group

  • G code Editor - Select from the installed editors

Jog Slider Settings

  • Minimum Linear Velocity - The approximate lowest value the jog slider

  • Default Linear Velocity - The default velocity for linear jogs, in , machine units per second

  • Maximum Linear Velocity - The maximum velocity for linear jogs, in machine units per second

  • Minimum Angular Velocity - The approximate lowest value the angular jog slider

  • Default Angular Velocity - The default velocity for angular jogs, in machine units per second

  • Maximum Angular Velocity - The maximum velocity for angular jogs, in machine units per second

Axis Display Options

  • Front Tool Lathe - Normally a lathe is Front Tool that is when the tool holder is on the users side of the spindle

  • Back Tool Lathe - A Back Tool Lathe the tool holder is on the opposite side of the spindle from the user side.
