Menu¶

Adding Menu Items Tutorial Tool Bar Buttons Tutorial

Note

Every menu item has a command button, so you don’t need to use any menu items if you don’t want to.

Adding a menu item creates an action. When you create File > Open menu, the actionOpen action is created.

_images/menu-01.png

Warning

If you use the full-screen option, you will not be able to exit the application if you don’t have the Exit action or an Exit Push Button or Press ALT-F4 to close the GUI.

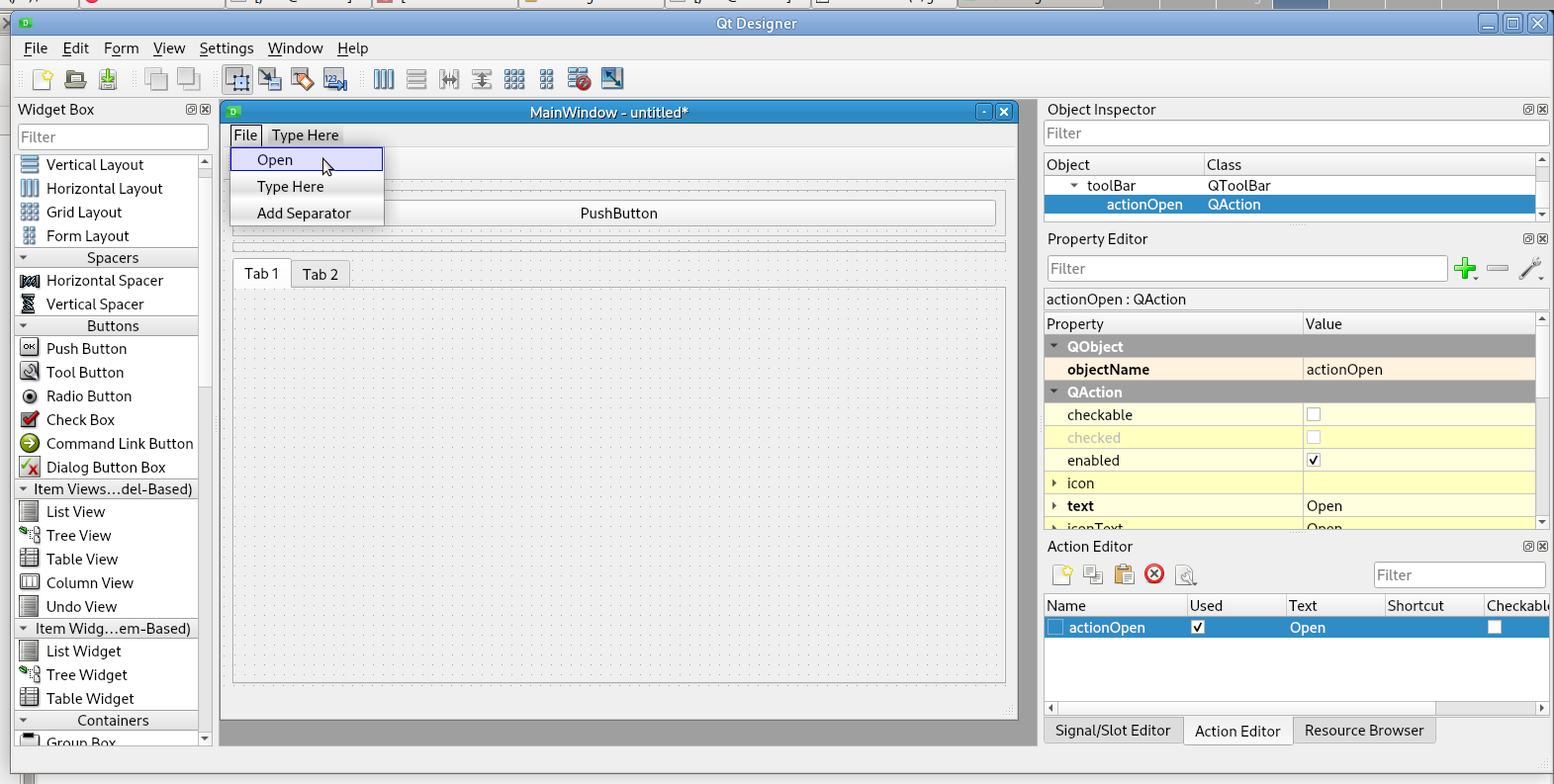

This shows the typical menu catagories which are the first items in each menu. The image is from the Qt Designer.

_images/menu-02.png

The following table shows the menu name you type into Qt Designer and the action name that is created by the Qt Designer. Menu catagories like File don’t create an action name.

Menu Items¶

File

Action Name

Open

actionOpen

Edit

actionEdit

Reload

actionReload

Save As

actionSave_As

Edit Tool Table

actionEdit_Tool_Table

Reload Tool Table

actionReload_Tool_Table

Ladder Editor

actionLadder_Editor

Quit

actionQuit

Machine

Action Name

E Stop

actionE_Stop

Power

action_Power

Run

actionRun

Run From Line

actionRun_From_Line

Step

actionStep

Pause

actionPause

Resume

actionResume

Stop

actionStop

Clear MDI History

actionClear_MDI_History

Copy MDI History

actionCopy_MDI_History

Homing

this creates a home menu item for each axis

Unhoming

this creates a unhome menu item for each axis

Clear Offsets

this creates a clear offsets for each coordinate system

Programs

Action Name

Show HAL

actionShow_HAL

HAL Meter

actionHAL_Meter

HAL Scope

actionHAL_Scope

View

Action Name

DRO

actionDRO

Limits

actionLimits

Extents Option

actionExtents_Option

Live Plot

actionLive_Plot

Velocity

actionVelocity

Metric Units

actionMetric_Units

Program

actionProgram

Rapids

actionRapids

Tool

actionTool

Lathe Radius

actionLathe_Radius

DTG

actionDTG

Offsets

actionOffsets

Overlay

actionOverlay

Clear Live Plot

actionClear_Live_Plot

Help

Action Name

About

actionAbout

Quick Reference

actionQuick_Reference

Action Names¶

When you add a menu item, it creates an action and the Object Name is created from the menu name automatically.

The Object Name must match the above items exactly in order to be discovered by Flex GUI:

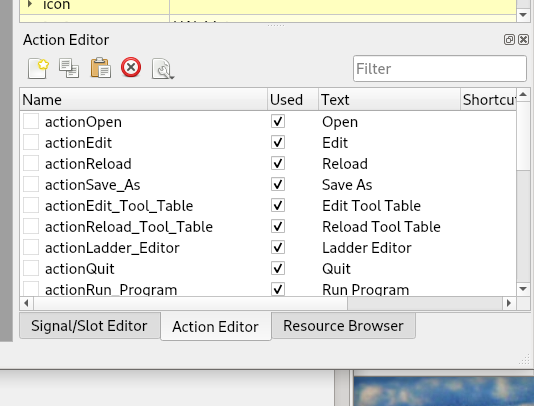

_images/actions-01.png

Recent Files¶

Note

The Recent menu item is added after the Open menu. There must be at least one menu item after Open for the Recent menu to be added.

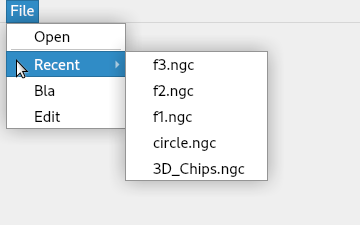

Location of the Recent menu after the Open menu:

_images/menu-03.png

Tool Bars¶

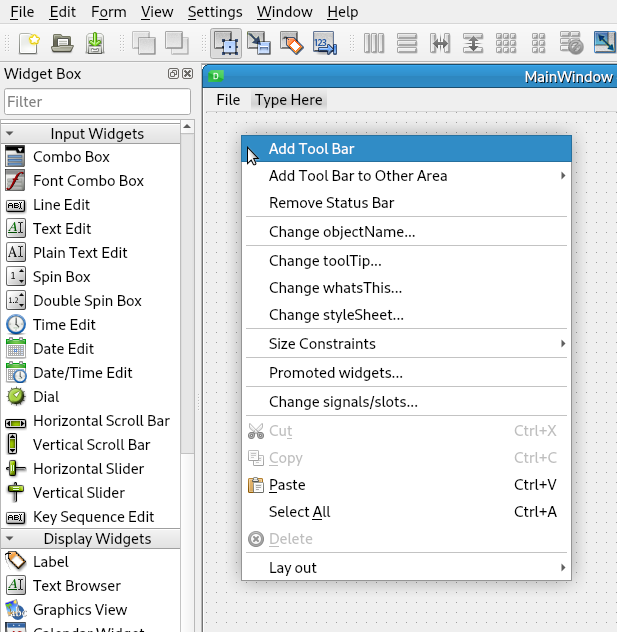

If you right-click on the main window, you can add a Tool Bar:

_images/tool-bar-01.png

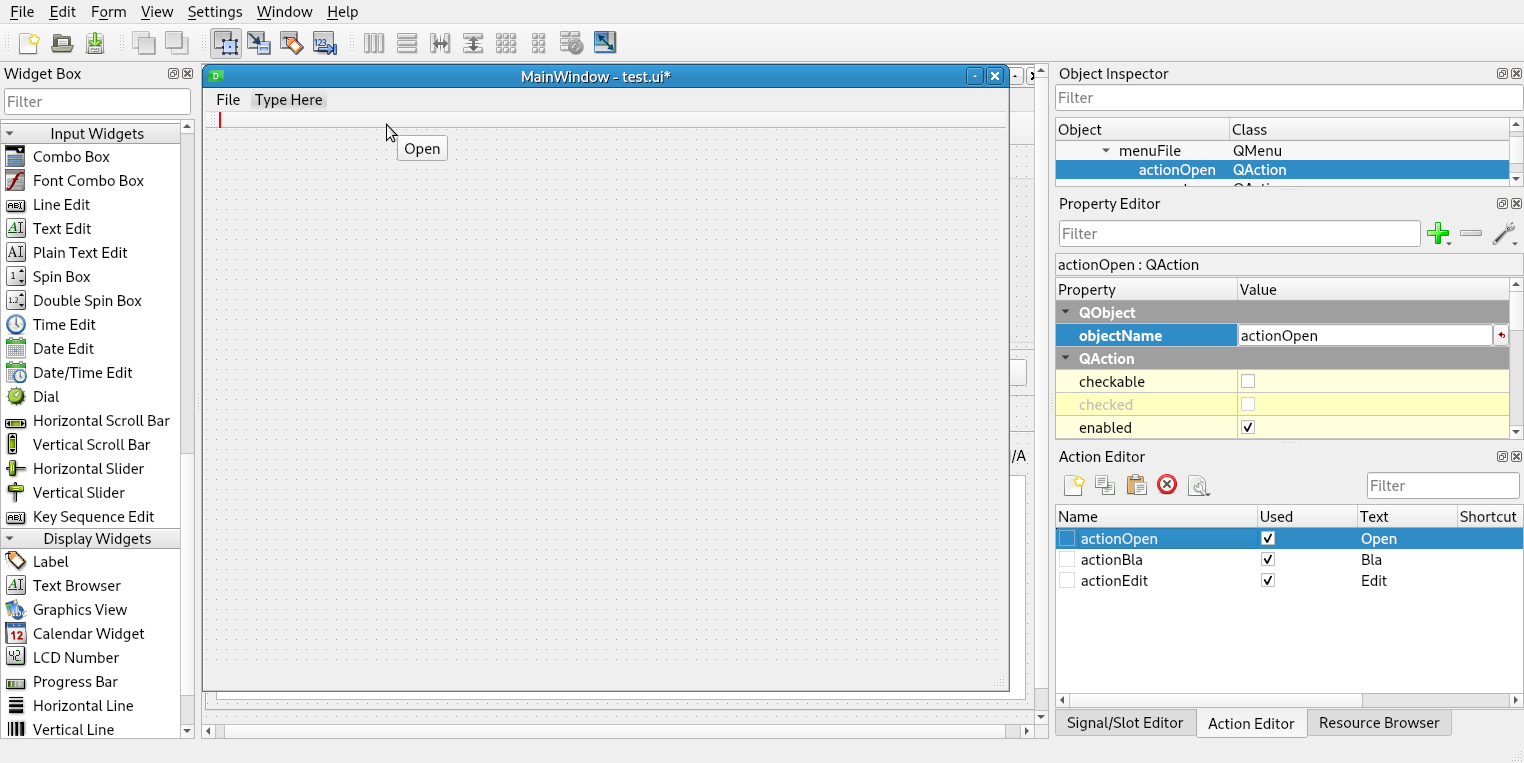

To add actions to the Tool Bar, drag them from the Action Editor and drop them in the Tool Bar:

_images/tool-bar-02.png

To set the style of a Tool Bar Button, use the action name and replace action with flex_ for example the actionQuit would be flex_Quit. See Tool Bar Buttons in the stylesheet examples.

Shortcut Keys¶

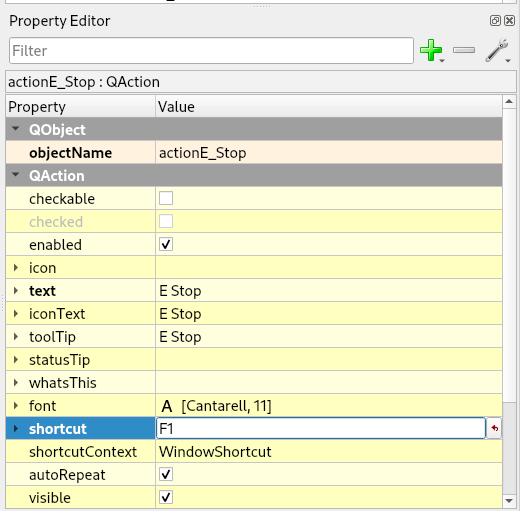

Shortcut keys can be added in the Property Editor by clicking in the shortcut Value box and pressing the key or key combination you want to use. You can change text, icon Text, or tool Tip also.

_images/actions-02.png

Note

A toolTip can be handy, however they might not work on touchscreens.
